GDFH Industrial High Pressure Plunger Pump
Home » PRODUCTS » Industrial High Pressure Plunger Pump » Ultra High Pressure & Stainless Steel » GDFH Industrial High Pressure Plunger Pump
GDFH Industrial High Pressure Plunger Pump

loading

GDFH Industrial High Pressure Plunger Pump GDFH Industrial High Pressure Plunger Pump

GDFH Industrial High Pressure Plunger Pump

Availability:
Quantity:
  • GDFH

  • BOTUO

Product Description

Excellent pump with suitable flow and pressure, you can use it for car washing and spraying. With the help of regulator valve, you could control the pressure by yourself. Stainless Steel pump head and crank box make pump durable and strong. The checking valve and ceramic plunger inside of pump are easily detached and have good performance. The crank shaft of pump is made by excellent alloy, it is strong and owns long use life. You can observe capacity of oil by oil mirror. When you first use our pump, you should change oil after using the pump for 50 hours.Then you should change oil after pump being used 500 hours. We will offer after-sale service within 1 year and offer service of providing spare part package.

Product Characteristic

1.Supper-alloy crank box and crank shaft

2.Special flange for connecting motor

3.Stainless Steel pump head

4.Functional checking valve

5.Durable connecting rob

6.A pump specialize in industry

Date Sheet
Pump ModelGDFH
Shaft & FlangeN 40mm
Max Input Power54kW/73hp
Max Input RPM1500/1800/2200rpm
Max Pressure600bar/8700psi
Max Flow88Lpm/23.2Gpm
Weight75kg
ApplicationHigh Pressure Water

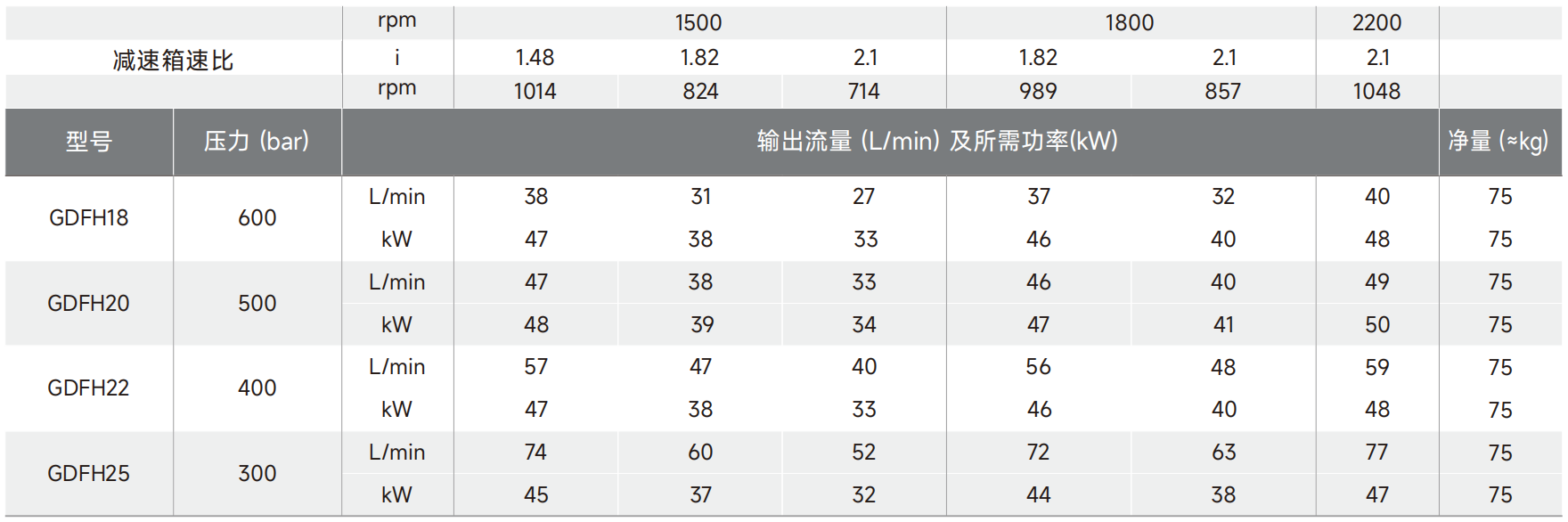

Model

Flow Rate

Pressure

Power

L/min

gpm

bar

psi

Mpa

hp

kW

GDFH18

45

11.9

600

8700

60

71

52

GDFH20

56

14.8

500

7250

50

73

54

GDFH22

68

18

400

5800

40

71

52

GDFH25

88

23.2

300

4350

30

71

52
