HDP Series Hot Water High Pressure Plunger Pump
Home » PRODUCTS » High Pressure Plunger Pump » Heat Resistant » HDP Series Hot Water High Pressure Plunger Pump
HDP Series Hot Water High Pressure Plunger Pump

loading

HDP Series Hot Water High Pressure Plunger Pump HDP Series Hot Water High Pressure Plunger Pump

HDP Series Hot Water High Pressure Plunger Pump

Availability:
Quantity:
  • HDP

  • BOTUO

Product Description

Excellent pump with suitable flow and pressure, you can use it for car washing and spraying.With the help of regulator valve, you could control the pressure by yourself.Cast brass pump head and cast iron crank box make pump durable and strong.The checking valve and ceramic plunger inside of pump are easily detached and have good performance.The crank shaft of pump is made by excellent alloy, it is strong and owns long use life.You can observe capacity of oil by oil mirror.When you first use our pump,you should change oil after using the pump for 50hours.Then you should change oil after pump being used 500hours.We will offer after-sale service within 1 year and offer service of providing spare part package.


Product Characteristic

1.Supper-alloy crank box and crank shaft

2.Special flange for connecting motor

3.Cast copper pump head

4.Functional checking valve

5.Durable connecting rob

6.Hot Water 105 degree

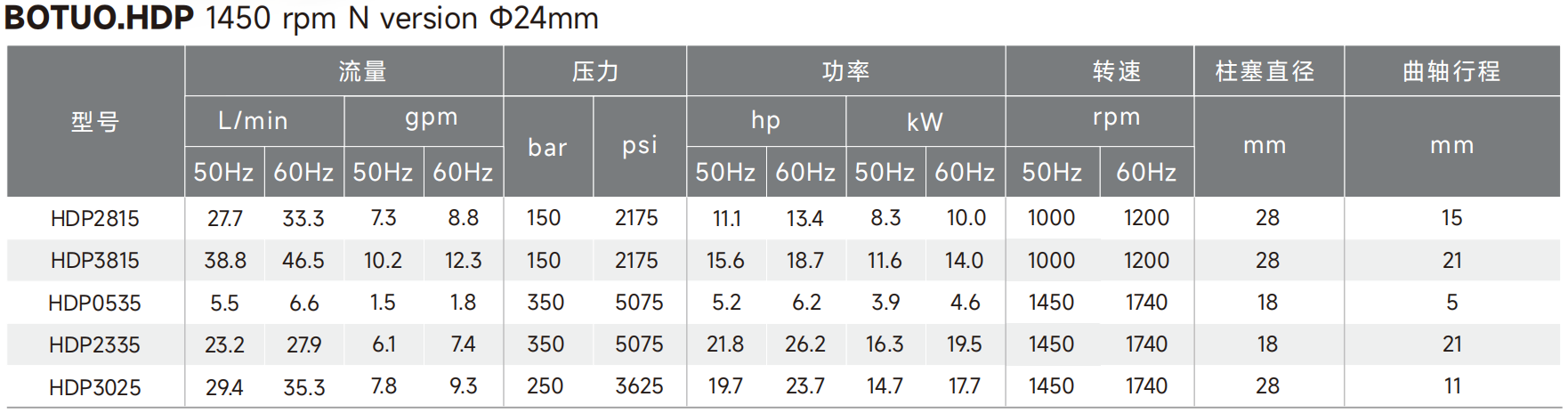

Date Sheet

Pump ModelHDP
Shaft & FlangeN-24mm
Plunger Diameter28mm
Stroke21mm
Max Input Power15kw
Max Input RPM1450rpm
Max Pressure150bar
Max Flow51Lpm
Weight19kg
ApplicationHigh Pressure Water


ModelMax Flow
Max Pressure
SpeedPower
L/mingpmBarpsirpmhpkw
HDP3015307.9315021751450129
HDP40154010.03150217514501612
HDP52155213.74150217514502015
