TK Series High Pressure Plunger Pump
Home » PRODUCTS » High Pressure Plunger Pump » Up To 30L/min, 300Bar » TK Series High Pressure Plunger Pump
TK Series High Pressure Plunger Pump

loading

TK Series High Pressure Plunger Pump TK Series High Pressure Plunger Pump
TK Series High Pressure Plunger Pump TK Series High Pressure Plunger Pump

TK Series High Pressure Plunger Pump

Availability:
Quantity:
  • TK

  • BOTUO

Product Description

Excellent pump with suitable flow and pressure, you can use it for car washing and spraying. With the help of regulator valve, you could control the pressure by yourself. Cast brass pump head and cast iron crank box make pump durable and strong. The checking valve and ceramic plunger inside of pump are easily detached and have good performance. The crank shaft of pump is made by excellent alloy, it is strong and owns long use life. You can observe capacity of oil by oil mirror. When you first use our pump, you should change oil after using the pump for 50 hours. Then you should change oil after pump being used 500 hours. We will offer after-sale service within 1 year and offer service of providing spare part package.

Product Characteristic

1.Supper-alloy crank box and crank shaft

2.Special flange for connecting motor

3.Cast copper pump head

4.Functional checking valve

5.Durable connecting rob

Date Sheet

Pump ModelTK-N
Shaft & FlangeSolid & Hallow
Plunger Diameter25mm
Stroke14mm
Max Input Power11kw/15hp
Max Input RPM1450rpm
Max Pressure250bar
Max Flow30lpm
Weight9kg
ApplicationHigh Pressure Water

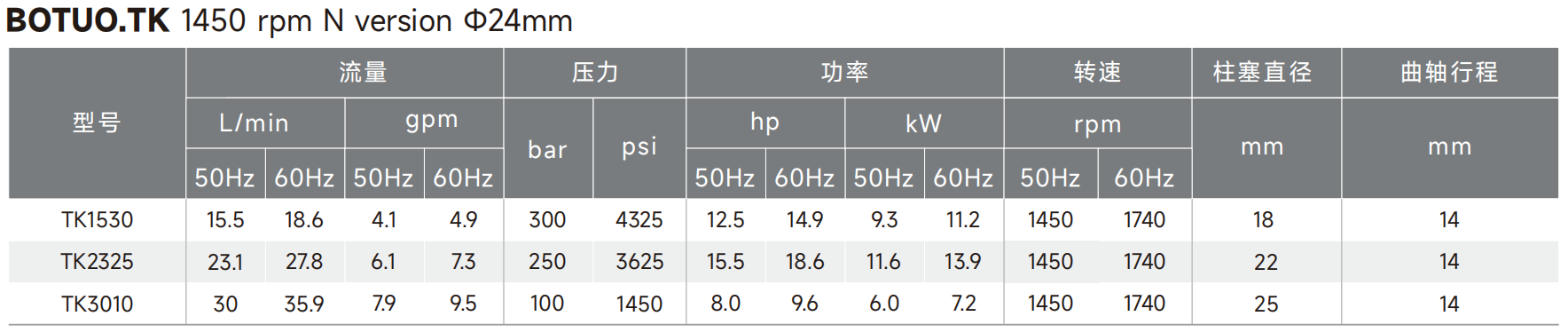

Model

FlowPressurePowerRPM
L/mingpmBarpsihpkwrpm
TK1510153.961001450431450

TK1530

153.9630043501391450
TK1610164.231001450431450
TK2310236.0810014505.541450
TK2325236.08250362515111450
TK3010307.9310014507.55.51450
